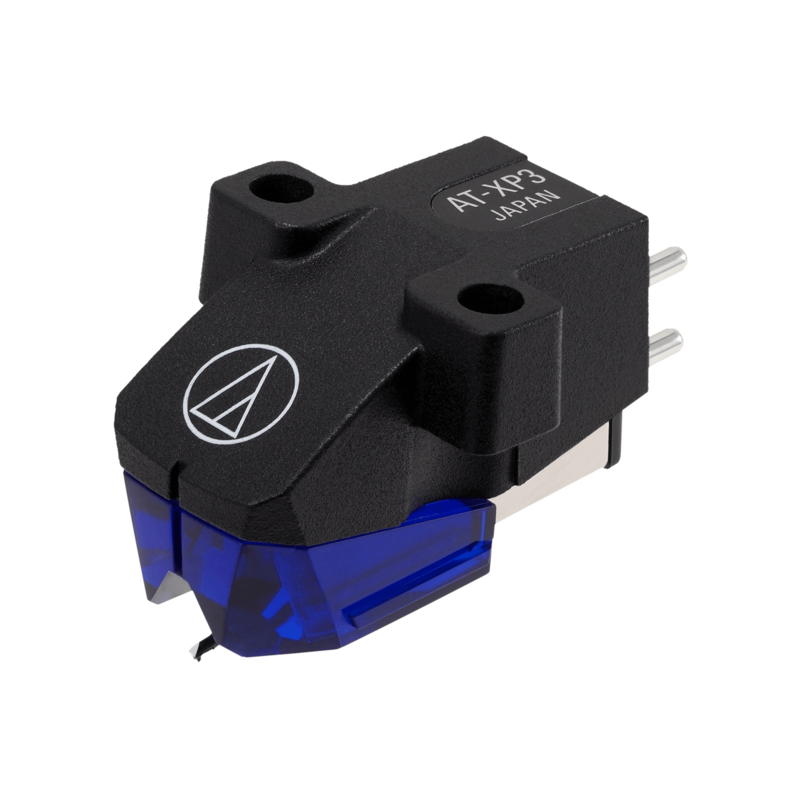

Audio Technica AT-XP3 pick-upelement
Artikelnummer: Audio Technica AT-XP3 - Tonar 9661
Audio Technica AT-XP3 pick-upelement.
Specifications
AT-XP3
Dual Moving Magnet Stereo Cartridge
The AT-XP series cartridges provide a high quality sound for vinyl DJ’s. Offering all of the features of a DJ cartridge, but with a Hi-fi sound, the XP series are perfect for the stage and club DJ who prioritises sound quality.
- Audiophile DJ cartridge equipped with a conical stylus
- Audiophile DJ cartridge equipped with a conical stylus
- VM dual magnet construction
- Durable robust design for high-quality specialist DJ playback
- Signal output level and output impedance characteristics suited for professional DJ applications
- Carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Compatible with the replacement styli ATN-XP5 and ATN-XP7 for an upgrade
- Configuration as single cartridge (AT-XP3), Replacement Stylus (ATN-XP3) and as headshell bundle together with the headshell AT-HS6BK available (AT-XP3/H).
| Cartridge & Stylus | |
|---|---|
| Frequentierespons | 20 to 18,000 Hz |
| Kanaalscheiding | 20 dB (1 kHz) |
| Verticale trackinghoek | 20 degrees |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Naaldconstructie | Bonded Round Shank |
| Aanbevolen ladingsimpedantie | 47,000 Ω |
| Spoelimpedantie | 6,700 ohms (1 kHz) |
| Spoelinductantie | 550 mH (1 kHz) |
| Uitgangsspanning | 5.5 mV (at 1 kHz, 5 cm/sec) |
| Balans uitgangskanaal | 2.0 dB (1 kHz) |

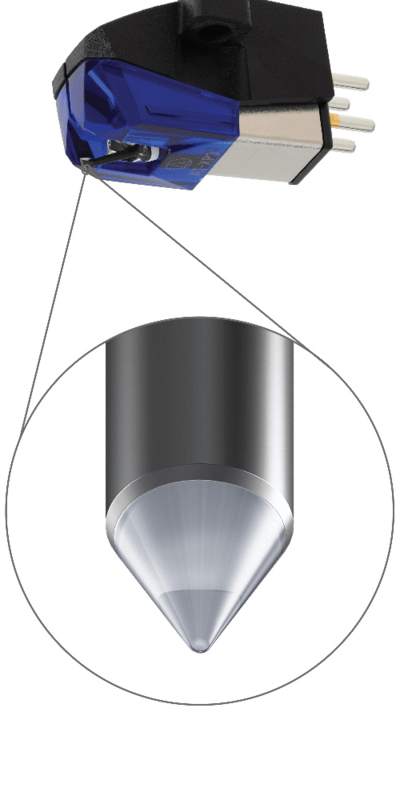

| Naaldvorm | Conical |
| Cantilever | Carbon reinforced ABS |
| Statische compliantie | 20 x 10 – 6 cm / dyne |
| Dynamische compliantie | 6.0 x 10 – 6 cm / dyne (100 Hz) |
| Bevestiging | Half-inch |
| Elementgewicht | 6.2g |
| Afmetingen | 17.2 x 17.8 x 28.3 ( H x W x D mm) |
| Meegeleverde accessoires | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Two Nut Non-magnetic screwdriver |
| Model | AT-XP3 |
| Aanbevolen ladingscapaciteit | 100-200 pF |
| Vervangingsnaald | ATN-XP3 |
| Naaldgrootte | 0.6 mil |
