Audio Technica AT-VM95 SP/H pick-upelement incl. headshell
Artikelnummer: Audio Technica AT-VM95 SP/H 78-TOEREN - Tonar 9674
Audio Technica AT-VM95 SP/H pick-upelement incl. headshell.
LET OP! Alleen geschikt voor 78-TOEREN platen.
AT-VM95 SP/H
VM95 series 78rpm SP cartridge on AT-HS6 Headshell
- AT-VM95SP mounted on AT-HS6BK headshell.
- The total set weight is 15.5g.
- Assembled and tested in the Audio-Technica Factory in Fukui-Japan.

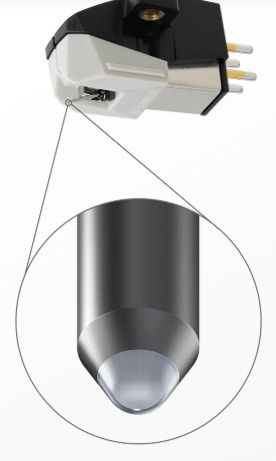

Conical Bonded (3mil) Stylus
A conical bonded stylus with a large curvature radius at the tip.
The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.

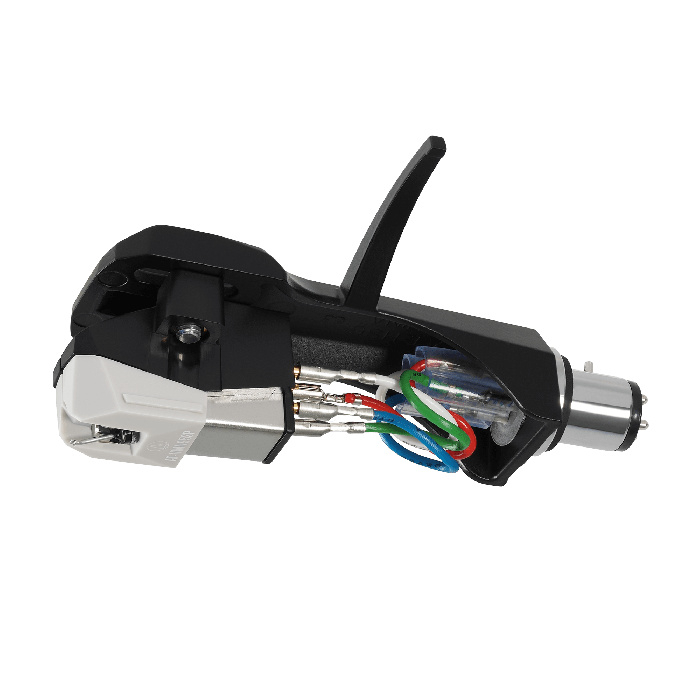

Preassembled With AT-HS6BK Headshell.
The AT-VM95SP cartridge is fitted onto the 9g aluminiumdie cast body headshell.
Specificaties
| Elementen & Naalden | |
|---|---|
| Frequentierespons | 20 - 20,000 Hz |
| Verticale trackinghoek | 23° |
| Vertical Tracking Force | 4.5 to 5.5g (5.0g standard) |
| Naaldconstructie | Bonded Round Shank |
| Aanbevolen ladingsimpedantie | 47,000 Ω |
| Spoelimpedantie | 3.3 kΩ (1 kHz) |
| Gelijkstroomweerstand | 485 Ω |
| Spoelinductantie | 550 mH (1 kHz) |
| Uitgangsspanning | 2.7 mV (@ 1 kHz, 5 cm/sec) |
| Balans uitgangskanaal | 1.5 dB (1 kHz) |
| Naaldvorm | SP 3 mil Conical Bonded |
| Cantilever | Aluminium Pipe |
| Statische compliantie | 12 x 10 – 6 cm / dyne |
| Dynamische compliantie | 2 x 10 – 6 cm / dyne (100 Hz) |
| Bevestiging | 1/2” centres |
| Afmetingen | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Model | AT-VM95SP/H |
| Aanbevolen ladingscapaciteit | 100-200 pF |
| Vervangingsnaald | AT-VMN95SP |
| Naaldgrootte | 3 mil |
| Type | VM Stereo Dual Magnet |
| Gewicht | 15.5 g |
| Spoeldraad | T.P. Copper |
